WTV - Wireless Antenna Range

Outdoor Omni – Directional Antennas
Value

Omni-directional Wi-Fi Antennas designed for the 2.4GHz ISM band. These economical yet high performance compact and lightweight antennas are ideally suited for IEEE 802.11b and 802.11g wireless LANs, Bluetooth®, public wireless hotspot application and other multipoint applications where wide coverage is desired.

	Model	WTV-2404U	WTV-2406U	WTV-2409U
	Frequency	2400-2500 MHx
	Gain	4 dBi	6 dBi	8 dBi
	Polarization	Vertical
	Vertical Beam-width	50°	28°	15°
	Horizontal Beam-width	360°
	Impedance	50 Ohm
	Maximum Input Power	100 Watts
	VSWR	<1.5:1 average
	Weight	90g	100g	500g
	Length	250mm	300mm	508mm
	Radome Material	White Fibreglass
	Wind Survival	>200 Km/hr
	Operating Temperature	-40° C to 85°C
	Connector	Integral N-Type Female (Bulkhead type)

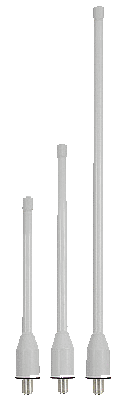

WTV-2404U	WTV-2406U	WTV-2409U
