WTR – Wireless Antenna Range

Omnidirectional Range Extender Antennas

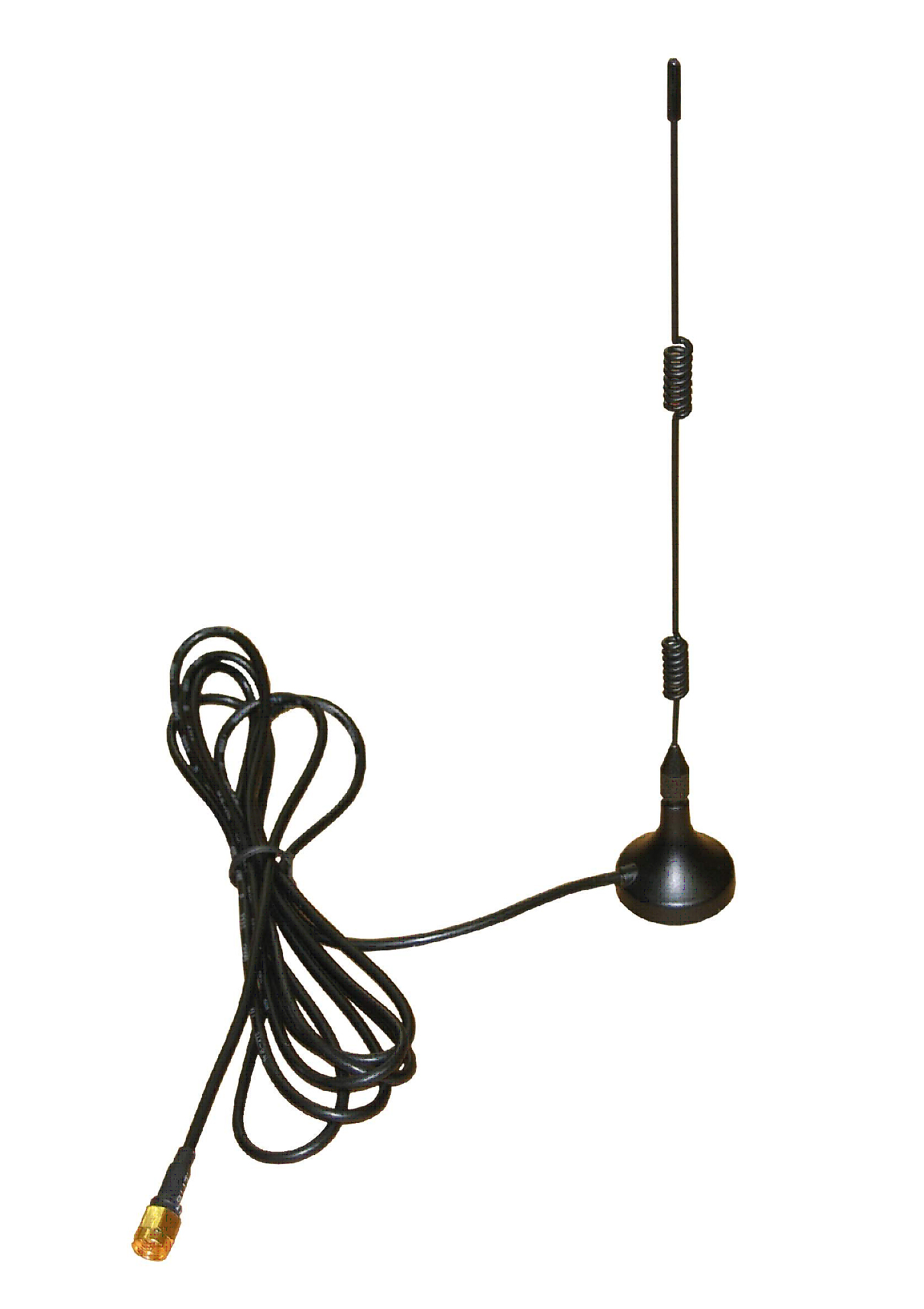

 WTR-2407 - 2.4GHz 7dBi mobile Wireless LAN Antenna

This is a low cost WiFi antenna kit designed for applications where 360 degree coverage is desired. It can be used indoors or outdoors to achieve greater range than standard "rubber duck" antennas or a PC card's internal antenna. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs and Bluetooth® applications and other systems operating in the 2.4GHz ISM band. The magnetic base is suitable for fixing to vehicles or other metal surfaces as well as sitting on a tabletop or shelf.

This antenna features a magnetic base with attached 1.5M cable terminated with the appropriate radio connector, eliminating the need for a separate radio pigtail adapter.

All antennas are tested by an HP Network Analyser before shipping.


 Applications

 Features
  • 2.4 GHz ISM Band
  • IEEE 802.11b and 802.11g Wireless LAN
  • WiFi Systems
  • Point to Multi-point Systems
  • Wireless Bridges
  • Economy with Superior performance
  • All weather operation
  • Great Flexibility
  • 1.5M Coaxial Lead
  • Easy to assemble
  • Comes with RSMA or RTNC Connector

Model WTR-2407
 Frequency  2400-2500 MHz
 Gain  7 dBi
 Impedance  50 Ohm
 Maximum Input Power  50 Watts
 VSWR  <1.5:1
 Weight  100g
 Mounting  Magnetic or table top
 Operating Temp.  -40° C to 85° C
 Connector  1.5M lead to RP-SMA or RP-TNC connector
