WTD –
Wireless Antenna Range
Outdoor Directional Antennas
WTD-2419G
- 2.4GHz 19dBi Reflector Grid Wireless LAN Antenna
Superior
Performance
The
WiFi Technologies Directional Reflector Grid Antenna provides 19 dBi
gain with a 12° horizontal beam-width for directional applications.
Applications include point to point systems, point to multi-point
and wireless bridges in the 2.4GHz ISM band as well as IEEE 802.11b
and 802.11g wireless LAN systems. Its compact design makes it nearly
invisible in most installations, and it can be installed for either
vertical or horizontal polarization.
|
Features
- Welded steel construction
- UV stable light grey powder coat finish
- All weather operation
- 12° beam-width
- 300mm coax lead
|
 |
Rugged and
Weatherproof
Rugged and Weatherproof
This antenna's construction features a welded
steel reflector grid for superior strength. The grid surface is UV
powder coated for durability and aesthetics, and the open-frame
design minimises wind loading.
The
WTD-2419G antenna is supplied with a 60° tilt and swivel mast mount
kit. This allows installation at various degrees of incline for easy
alignment.
| Model |
WTD-2419G |
| Frequency |
2400-2500 MHz |
| Gain |
19 dBi |
| Polarization |
Horizontal or Vertical |

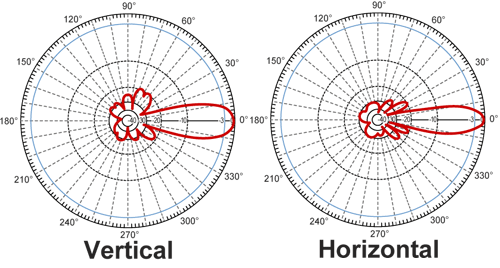

| Vertical Beam-width |
16° |
| Horizontal Beam-width |
12° |
| Front to Back Ratio |
25 dB |
| Impedance |
50 Ohm |
| Maximum Input Power |
100 Watts |
| VSWR |
<1.5:1 average |
| Weight |
2.4 kg |
|
Grid Dimensions |
400 mm x 600 mm |
|
Mounting |
50
mm diameter mast max |
|
Elevation Angle |
0
to +15° |
|
Operating Temp. |
-40° C to 85° C |
|
Connector |
30cm lead to Female N-connector |
|
