WTD – Wireless Antenna Range

Outdoor Directional Antennas
WTD-2415G
- 2.4GHz 15dBi Mini-Reflector Grid Wireless LAN Antenna

Superior Performance

The WiFi Technologies Directional Mini-Reflector Grid Antenna provides 15 dBi gain with a 16° horizontal beam-width for directional applications. Its compact design makes it nearly invisible in most installations, and it can be installed for either vertical or horizontal polarization.
It is ideally suited for 2.4GHz ISM band applications such as
IEEE 802.11b and 802.11g wireless LAN systems.

Features

  • Welded steel construction
  • UV stable light grey powder coat finish
  • All weather operation
  • 16° beam-width
  • 300mm coax lead





Rugged and Weatherproof

This antenna's construction features a welded steel reflector grid for superior strength. The grid surface is UV powder coated for durability and aesthetics, and the open-frame design minimises wind loading.

The WTD-2415G antenna is supplied with a 60° tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment.

Model WTD-2415G
 Frequency  2400-2500 MHz
 Gain  15 dBi
 Polarization  Horizontal or Vertical

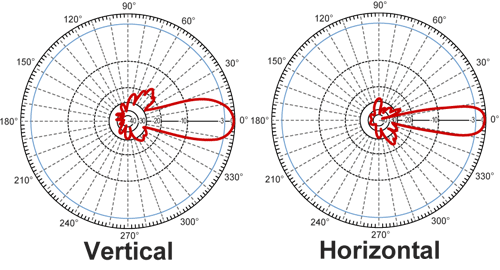

 Vertical Beam-width  21°
 Horizontal Beam-width  16°
 Front to Back Ratio  20 dB
 Impedance  50 Ohm
 Maximum Input Power  100 Watts
 VSWR  <1.5:1 average
 Weight  1.4 kg
 Grid Dimensions  300 mm x 400 mm
 Mounting  50 mm diameter mast max
 Elevation Angle  0 to +15°
 Operating Temp.  -40° C to 85° C
 Connector  30cm lead to Female N-connector
